4. Animating with the Sin & Cos

⭐️ In this tutorial we will learn how to use sin to create movement!

Sine Waves by Carson Kompon (@URL)

Hello Sin Circle

The function sin is very useful because if you feed it time t() it will grow and shrink and grow and shrink forever.

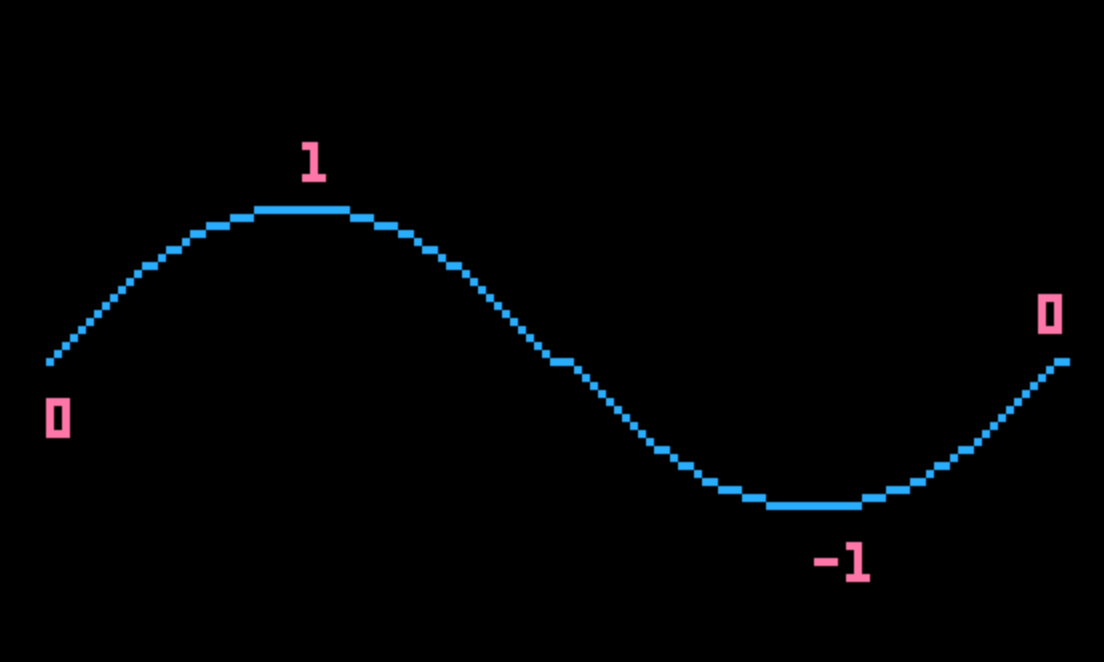

The value fluctuates from -1 to 1 to -1 to 1.

sin_wave

If we want a bigger value we can multiply it to get a bigger range for example -10 to 10:

10 * sin(t())

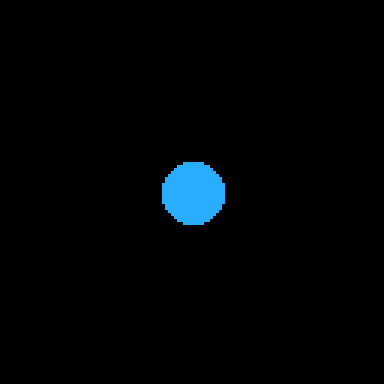

So if we use sin for the size of a circle, the circle will grow and shrink.

Note that half the time we won’t see the cirlce when the size is negative.

function _draw()
  -- clear screen
  cls()

  -- get time value
  time = t()

  -- size from sin
  size = 10*sin(time)

  -- circfill( x, y, radius, color )
  circfill(64, 64, size, 12)
end

Fast forward and Slow motion

The circle is moving too fast!!

We can slow and speed up time by dividing or multiplying it.

So let’s change code to be time = t() / 2

function _draw()
  -- clear screen
  cls()

  -- get time value
  -- divide time by 2 to slow it down
  time = t() / 2

  -- size from sin
  size = 10*sin(time)

  -- circfill( x, y, radius, color )
  circfill(64, 64, size, 12)
end

Shifting the range

What if we want our circle to start from a positive size, let’s say go from 10 to 30?

If we add 1 to sin, instead of -1 to 1 we will get 0 to 2 because -1 + 1 = 0 and 1 + 1 = 2

So let’s change our code to be:

s = sin(time)+1

If we divide this by 2 we will get a nice 0 to 1 range:

s = (sin(time)+1)/2

Now that we have 0 to 1 we can easily get the range 10 to 30.

Let’s make the size go from 0 to 20 by multiplying s by 20:

size = s*20.

And then add 10 to make it from from 10 to 30:

size = 10 + s*20

function _draw()
  -- clear screen
  cls()

  -- get time value
  -- divide time by 2 to slow it down
  time = t() / 2

  -- change sin range to 0-1
  s = (sin(time)+1)/2

  -- size from sin shifted to 10-30
  size = 10 + 20*s

  -- circfill( x, y, radius, color )
  circfill(64, 64, size, 12)
end

Exercise 🍓

Can you mofiy the code to make the circle change color over time. From red to pink?

Movement with sin

Similar to how we change scale, we can change position using sin and get a looping animation.

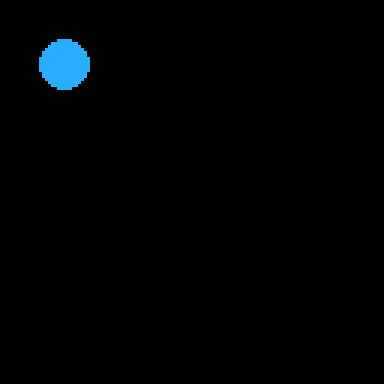

For example if we shift the sin range to be from 20 to 100 and pass it as the x and y position of a circle, it will move diagnally in a loop:

function _draw()
  -- clear screen
  cls()

  -- get time value
  time = t() / 4

  -- change sin range to 0-1
  s = (sin(time)+1)/2

  -- set pos to sin range 20-100
  pos = 20 + s*80

  -- draw circle
  circfill(pos, pos, 8, 12)
end

Spinning with sin and cos!

Something cool about sin and it’s sibling cos is that they can create circular motion!

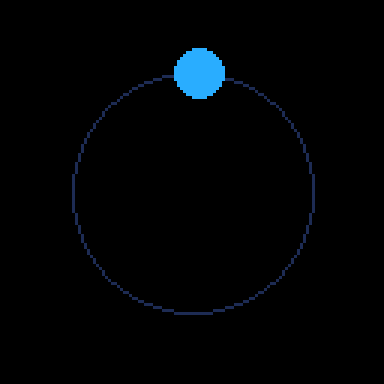

If you set the x position of a circle to cos and the y pos to sin you will see it spin in a circle

x = center + radius * cos(time) y = center + radius * sin(time)

function _draw()
  -- clear screen
  cls()

  -- get time value
  -- divide time by 2 to slow it down
  time = t() / 4

  -- change sin range to 0-1
  s = (sin(time)+1)/2

  -- size and color sin
  size = 8
  c = 12

  -- rotate
  center = 64
  r = 40

  x = center + r*cos(time)
  y = center + r*sin(time)

  -- draw path just because it's nice
  circ(center,center,r,1)

  -- draw circle
  circfill(x, y, size, c)

end

Note that you can collapse all the math and get the same visual with just a few rows of code:

function _draw()
  -- clear screen
  cls()

  -- draw path just because it's nice
  circ(64,64,40,1)

  -- spinning circle
  x=64+cos(t()/4)*40
  y=64+sin(t()/4)*40
  circfill(x,y,8,12)
end

Exercise 🍓

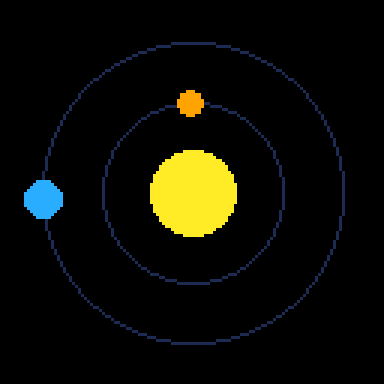

Can you make a solar system or another cool animation using sin and cos?
